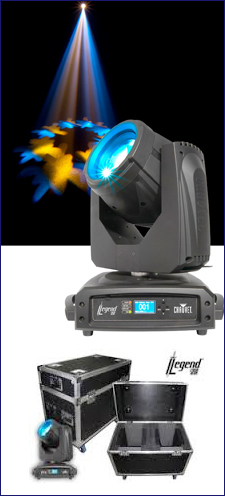

Legend 230SR Beam

The Legend™ 230SR Beam features a 230-watt Osram Sirius lamp outputting an intense 96,000 lux at 15 meters, thanks to precision glass optics and a tiny 2.25-degree beam angle. Compact and agile, it also features a zooming 8-facet prism and 17 gobos (plus open) for beam shaping effects, along with automated focus. In addition to 14 solid colors plus white, the color wheel delivers seamless split colors.

Precision designed optics for hard edged beam effects.

• 2.25° Beam Angle

• 96,000 lux @ 15m

• 8-fact prism with zoom

• 17 gobos

• 14 colors

• Automated focus

• Strobe Rate: 0 - 20Hz

• Variable frost for wash style effects

• powerCON power input (120v to 240v)

• 3 pin and 5 pin DMX Input and Output Connectors

• DMX Channels: 15 or 18

• Weight: 41.3 lbs

Power whips available for Edison, L6-20, L14-20 and PowerCon.

Road cases hold 2 fixtures each.

Qty Available: 16
