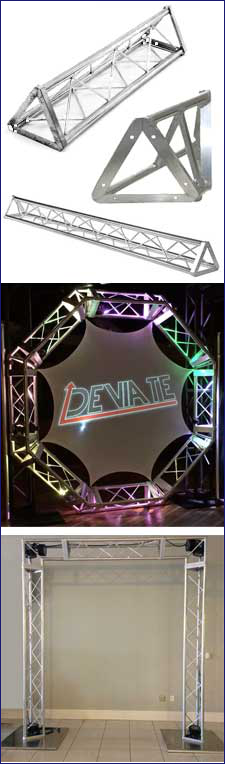

Applied Euro Tri 14" Truss

• Highly Polished Aluminum Tubing

• 1.9" OD 6061-T6 Aluminum Tube

• 0.145" Wall Thickness

• 1/2" Solid Aluminum Rod Bracing

• 1-1/2" x 3/16" Aluminum End Plates

• Weight:

10 ft. section - 30 lbs

9 ft. section - 27 lbs

Weight Loading Information

Length

10' Span

20' Span

30' Span

40' Span

Available Truss:

10 ft. Sections: 12

9 ft. Sections: 8

5 ft. Sections: 8

2.5 ft. Sections: 8

Horizontal 90 degree corners: 4
Horizontal 45 degree corners: 8

Vertical 90 degree long corners: 6

Floor bases also available:

8 - 36" x 36" Aluminum Bases

4 - 24" x 24" Wooden Bases

Uniform Distribution

1,480 lbs

1,150 lbs

700 lbs

475 lbs

Center Point Load 525 lbs

475 lbs

350 lbs

220 lbs
