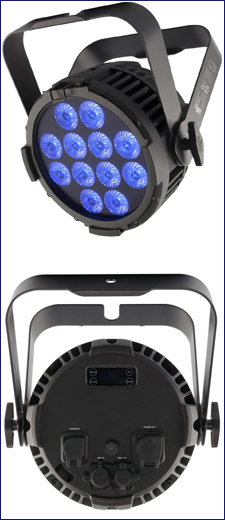

COLORdash Par H12IP

COLORdash Par H12IP is a compact, yet powerful IP-rated RGBWAUV LED wash delivering a beautifully mixed, soft field of richly saturated colors. It features a user-friendly OLED full text display. IP rated connections for power and DMX make setup a breeze.

• DMX Channels: 6, 8, or 13

• DMX Connectors: 5-pin XLR

• Light Source: 12 LEDs (hex-color RGBAW+UV) 10 W

• Strobe Rate: 0 to 30 Hz

• Beam Angle: 22°

• Field Angle: 34°

• Illuminance: 1180 lux @ 5 m

• IP Rating: IP65

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power Linking: 14 units @ 120 V; 24 units @ 208 V; 28 units @ 230 V

• Power and Current: 113 W, 0.936 A @ 120 V, 60 Hz

¶ Power and Current: 114 W, 0.555 A @ 208 V, 60 Hz

• Power and Current: 115 W, 0.505 A @ 230 V, 60 Hz

• Power Input: Seetronic Powerkon IP65 (Truecon)

• Weight: 13.4 lb

• Size: 12.3 x 11.9 x 6.9 in

Qty Available: 53
