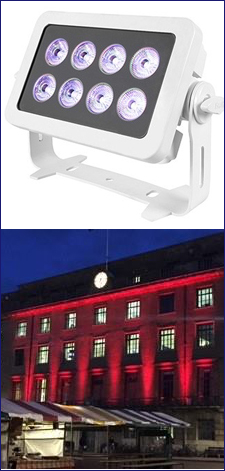

Illuminarc Colorist Panel 8Qa

Outdoor Wash Fixture

• DMX Channels: 4, 6, or 10

• DMX Connectors: 5-pin XLR

• Light Source: 8 LEDs (quad-color RGBA) 15 W

• Strobe Rate: 0 to 30 Hz

• Beam Angle: 16°

• Field Angle: 27°

• Illuminance: 1,005 lux @ 5 m

• IP Rating: IP65

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power Linking: 21 units @ 120 V, 37 units @ 208 V, 38 units @ 230 V

• Power and Current: 54 W, 0.49 A @ 120 V

• Power and Current: 52 W, 0.27 A @ 230 V

• Power Connection: Proprietary IP65

• Data Connection: Proprietary IP65

• Weight: 11.6 lb

• Size: 12.7 x 9.3 x 4.5 in

Qty Available: 10
