D-Fi Hub

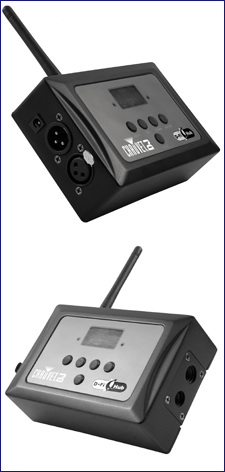

D-Fi™ Hub is a compact, easy-to-use DMX unit that functions as either a transmitter or receiver. For more stable communication between units, it operates on a 2.4 GHz frequency range and includes an “auto” function which automatically finds the best frequency and syncs the units effortlessly. You can wirelessly synchronize an unlimited number of D-Fi™-ready fixtures simultaneously,

Use with our Freedom Par Hex-4 or Freedom Strip Hex-4 fixtures.

• DMX Connectors: 3-pin XLR
• Operating Frequency: 2.412 to 2.484 GHz
• Antenna connection: RP-SMA
• Max Unobstructed Distance: 656 ft (200 m)
• Input Voltage: 9 VDC, 500 mA
   (external power supply: 100 to 240 VAC, 50/60 Hz)

• Weight: 1.2 lb
• Size: 4 x 3.2 x 1.6 in

Qty Available: 1
