Freedom Par Hex-4

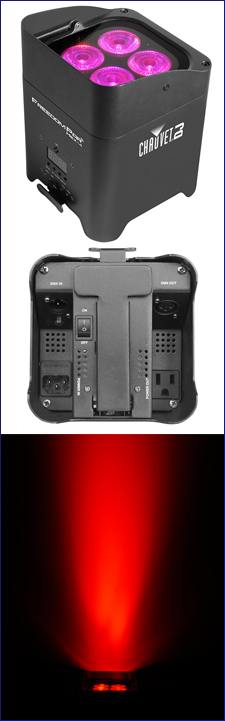

The Freedom Par Hex-4 is a battery powered, wireless LED fixture with four 5.7-watt RGBAW+UV LEDs for that extra punch and the special effects that white and UV add to color mixing. Built-in D-Fi transceiver allows controlling other Hex-4 fixtures wirelessly, or using with our D-Fi Hub or FlareCon controller.

• DMX Channels: 6, 8, or 12

• DMX Connectors: 3-pin XLR

• Light Source: 4 LEDs (hex-color RGBAW+UV) 5.7 W (2 A)

• Strobe Rate: 0 to 25 Hz

• Beam Angle: 23°

• Field Angle: 34°

• Operating Frequency: 2.433 to 2.481 GHz

• Illuminance: 1,372 lux @ 2 m

• Maximum Run Time (all on): up to 8 hours (with limiter on)

• Maximum Run Time (single color): up to 20 hours

• Recharge Time: 6 hours

• Power Linking: 26 units @ 120 V

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power and Current: 35 W, 0.3 A @ 120 V, 60 Hz

• Weight: 6.2 lb (2.9 kg)

• Size: 5.4 x 5.7 x 7.2 in (138 x 145 x 184 mm)

Road cases hold 9 fixture each.

Padded soft cases hold 4 fixtures each.

Qty Available: 36

In addition, we have 24 Freedom Flex H4 which are functionally identical but with a removable battery pack and are IP54 rated.
