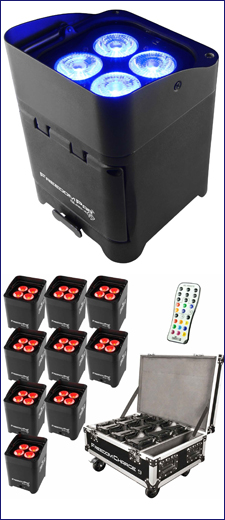

Freedom Par Quad-4 IP

Freedom Par Quad-4 IP is a 100% TRUE wireless, battery-operated, quad-color (RGBA) LED Par with built-in D-Fi transceiver. Its temporary outdoor-rated robust housing repels water, snow, dirt, and sand for all-weather applications.

• DMX Channels: 6, 8, or 12

• DMX Connectors: 3-pin XLR

• Light Source: 4 LEDs (quad-color RGBA) 5 W (2 A)

• Strobe Rate: 0 to 25 Hz

• Beam Angle: 15°

• Field Angle: 29°

• Operating Frequency: 2.412 to 2.484 GHz

• Illuminance: 2,464 lux @ 2 m

• IP Rating: IP54

• Maximum Run Time (all on): up to 8 hours (with limiter on)

• Maximum Run Time (single color): up to 20 hours

• Recharge Time: 7 hours

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power and Current: 35 W, 0.3 A @ 120 V, 60 Hz

• Weight: 8 lb

• Size: 5.4 x 5.7 x 7.5 in

Road cases hold 9 fixture each.

Padded soft cases hold 4 fixtures each.

Qty Available: 9
