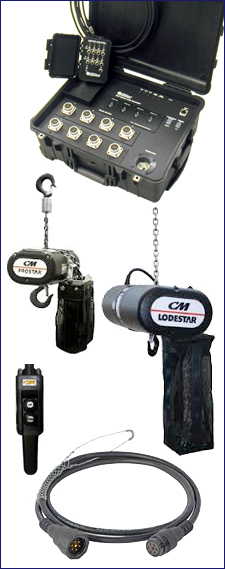

This unit is designed and built for the unique rigging applications encountered at smaller venues. Lightweight and portable, the ProStar features a dual braking system and overload protection for the hoist and operator.



• 1/4-Ton (500#) rating

• 60 ft. lift

• 12 FPM

• Single Phase 120v

• 7 pin Socapex for power & control  (adapters to dual twist available)

• DC Electro-Mechanical Double Brakes

• One Piece Jam-Free Chain Guide: For smooth operation







Designed and built to take the rigors of touring, this lift interfaces with all existing controllers and power distros. It is easy to handle, operate, and maintain, with a zinc-plated load chain that resists corrosion, grease lubrication in its gear case to eliminate oil drips on stage, and adjustable screw limits to provide added reliability.



• 1/2-Ton (1000#) rating

• 60 ft. lift

• 16 FPM

• Single Phase 120v

• 7 pin Spocapex for power & control  (adapters to dual twist available)

• L14-20 twistlock for independent control

• DC Electro-Mechanical Double Brakes

• One Piece Jam-Free Chain Guide: For smooth operation







• 8 motor control

• 7 pin socapex power/control

• Single phase 110/220v

• Input Power: 50 amp Califonria Style Twistlock

• Remote control via 6 pin XLR  (50' and 100' remote cables available)

• Individual "bump" buttons

• Adapters available to dual twistlock (L5-20 power, L14-20 control)

• Lightweight rolling Pelican case





• 7 pin Socapex 16/7 Power/Control Cables
    Length      Qty

      25 ft.         2

      50 ft.         3

      75 ft.         2

     100 ft.        6

     150 ft.        2

     200 ft.        1





• Pickles with L14-20

• "Cheater" power adapters - Edison to L5-20
