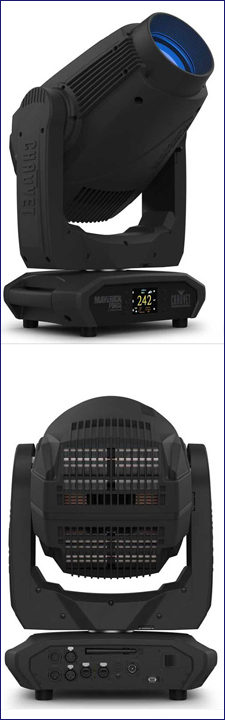

Maverick Force 2 Profile is a lightweight, tour-grade moving head with a big presence. The powerful unit features an output of over 20,000 lumens and an artillery of speedy effects housed in a deceptively compact frame, under 60lbs. Maverick Force 2 Profile features CMY + CTO color-mixing, a color wheel with a CTB and CRI option, and an extensive zoom range of 7 to over 50 degrees that maintains a flat field of focus even when fully wide. A custom-built framing system containing 4 dual axis shutters with a 120-degree field of rotation, motorized iris, focus, zoom, and frost capabilities, alongside a 5-facet rotating prism give an abundance of tools for beam shaping. Two rotating glass gobo wheels featuring gobos created in collaboration with leading designers can be stacked on top of one another for dynamic effects. Control with DMX, sACN, Art-Net or W-DMX.

• 580 W LED yoke profile fixture

• CMY + CTO color mixing

• four-blade framing shutter system with rotation

• color wheel

• 6.8° to 55.9° zoom range for variable beam sizes

• Iris

• 5-facet prism and frost for beam control

• two rotating gobo wheels

• 16-bit dimming of master dimmer for smooth control of fades

• Variable CMY + CTO color mixing system to create a wide pallet of colors

• CRI and CTB filters on color wheel for added flexibility

• Two rotating, indexing and interchangeable slot and lock gobo wheels

• DMX , WDMX, sACN, and Art-Net for full flexibility of control options

• True 1 compatible power input

• Battery backup display with auto-rotate depending on fixture orientation

• Dimensions: 30.12 x 13.58 x 19.1 in

• Weight: 57.3 lb

Qty Available: 6

Come in road case - 2 per case
