Rogue Outcast 1 BeamWash

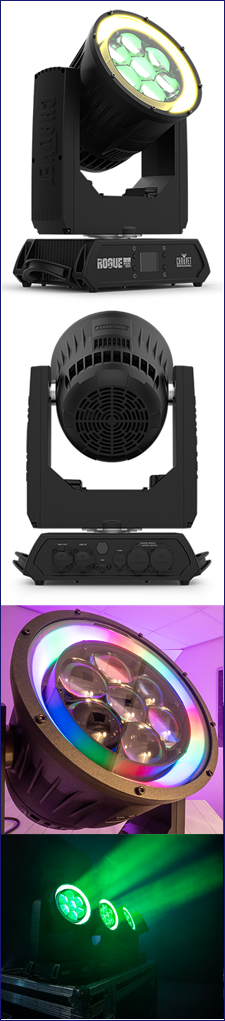

CRogue Outcast 1 BeamWash is a lightweight, IP65 rated, LED Beam & Wash fixture enhanced with a pixel-mappable LED ring around it’s face. A unique lens design developed for tight beam effects allows for a wide zoom range of 3.9° to 55.3° for maximum coverage. Seven 45W RGBW LED’s combine excellent color mixing with a punchy output featuring 16-bit dimming and several dimming modes for advanced control. The outer ring comprises of 12 pixel-mappable RGB LED zones underneath a smoked stealth filter.

• 16-bit dimming of master dimmer as well as individual colors

• 7 RGBW LEDs, 45 W each

• 12 zone pixel-mappable RGB LED outer ring under a stealth filter

• Prebuilt programs for outer LED ring with the ability to easily control
dimming, rate, foreground and background colors

• 5-pin DMX input/output connections

• Unique lens design for excellent color blending and tight beam effects

• Extremely fast, smooth pan and tilt movement

• RDM enabled for remote addressing and trouble shooting

• Selectable PWM settings for camera operation

• Zoom Range: 3.9° to 55.3°

• Power Connections: True1

• Power Linking: 3 units @ 120v; 6 units @ 208v; 7 units @ 230v

• Weight: 20.2 lbs

Qty Available: 8
