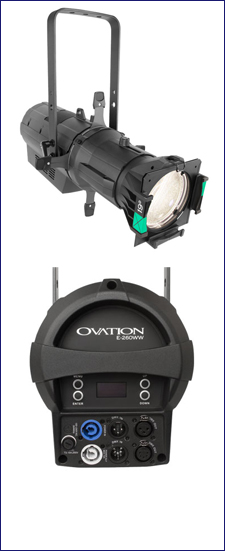

Ovation E-260WW is powered by a single source LED that exceeds the output of a 750 W tungsten light source. This warm or cool white ERS-style fixture boasts extremely smooth dimming down to the very bottom of the curve as well as a flat and even field of light for superior gobo projection. Control options like selectable PWM, RDM, and selectable dimming curves round out this virtually silent ellipsoidal. presets from 2800 to 6500 K that match a tungsten source to perfection.

• Warm white ERS style fixture with output exceeding a tungsten 750w source

• Ultra smooth 16-bit dimming, and 8-bit dimming curves

• Flat, even field of light for superior gobo projection

• RDM (Remote Device Management) for added flexibility

• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

• Virtually silent operation for use in studio and theatre applications

• Works perfectly with industry standard lens tubes and accessories

• Neutrik® powerCON™ connector with loop out

• 3-pin and 5-pin DMX input and output connectors

• DMX Channels: 1, 2, 3 or 6

• 19°, 26°, 36°, 25-50° zoom HD lenses available

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power Linking: 8 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V

• Power and Current: 209 W, 1.655 A @ 120 V, 60 Hz

• Power and Current: 206 W, 1.026 A @ 208 V, 60 Hz
• Power and Current: 204 W, 0.925 A @ 230 V, 50 Hz

Qty Available: 12 (4 are the E-260WW IP)
