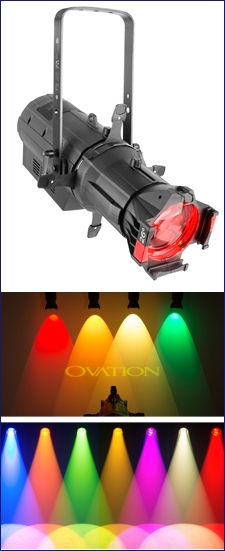

Ovation E-910FC
Ovation E-910FC is fully featured color mixing ERS-style fixture. It features full RGBA-Lime color mixing with output rivaling an incandescent fixture. Sacrifice nothing when it comes to control options with modes providing full 16-bit dimming (per color and master), selectable PWM, RDM and on-board dimming curve selection. Also accessible is our Virtual Color Wheel which matches popular gel colors when projected by a tungsten source, in addition we have added color temperature presets from 2800 to 6500 K that match a tungsten source to perfection.

Light Source: 91 LEDs (18 red, 18 green, 19 blue, 18 amber, 18 lime green)   3 W, (1.4A), 5850 K,

• Neutrik® powerCON™ connector with loop out
• 3-pin and 5-pin DMX input and output connectors
• 19°, 26°, 36°, 50° lenses available
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 6 units @ 120 V; 11units @ 208 V; 12 units @ 230 V
• Power and Current: 240 W, 2.006 A @ 120 V, 60 Hz
• Power and Current: 234 W, 1.160 A @ 208 V, 60 Hz
• Power and Current: 234 W, 1.074 A @ 230 V, 50 Hz


Qty Available: 16
