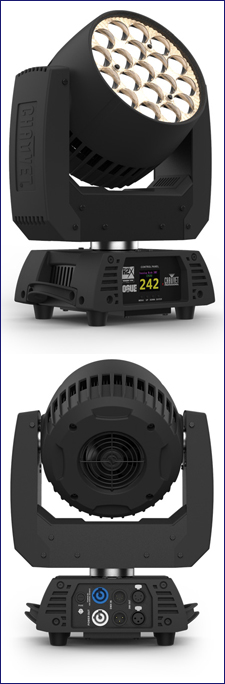

Rogue R2X Wash VW (Variable White)

Rogue R2X Wash VW is a variable white version of the industry-leading Rogue R2X Wash. Ideal for broadcast and exhibition markets, this versatile unit is capable of rendering nearly any temperature of white ranging from 2600 to 6075K. Rogue R2X Wash utilizes 19 (25 W) Warm White and Cool White LEDs, offering five zones of LED control for pixel-mapping effects, as well as built-in automated programs. The versatile zoom range of 12° to 49° and unique lens design allows for full coverage in even the widest of areas.

• 19 LEDs (WW, CW), 25 W each

•Color Temperature (range): 2600 to 6075 K
• Beam Angle: 8° to 34.4°

• Field Angle: 11.3° to 50.4°

• Zoom Angle: 11.3° to 50.4°

• DMX Channels: 15, 18, 23, 34 or 36

• Fast, smooth pan and tilt movement

• Dim Curves: 4

• 3- and 5-pin DMX input/output connections

• Omega mounting bracket

• Easy to read OLED display with simple, effective menu options

• Simple and complex DMX channel profiles for programming versatility

• Dimensions: 8.58 x 12.05 x 15.67 in

• Weight: 22.8 lb

Power cables available in PowerCon, Edison, L6-20 or L14-20.

Road cases hold 6 fixtures each.

Qty Available: 8
